【STM32】程序框架视频讲解全网最详细

STM32程序使用STM32CubeMX生成的程序的讲解，本次讲解的程序是特纳斯电子校园网使用的程序简单的框架，不含freeRTOS的程序

1.文件结构

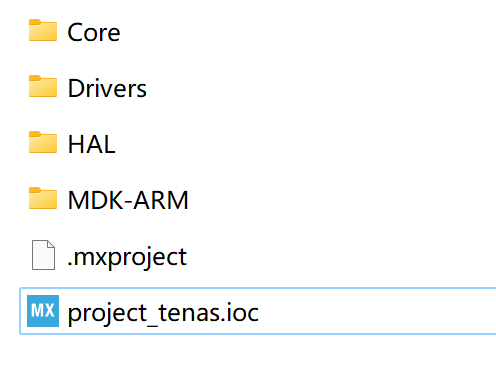

程序从上向下分别是

1：系统的文件一般是系统的.c  .h   文件这部分可以不需要了解，但是必须要有

2：系统的驱动文件，这个部分一般是系统自动生成的驱动，也是可以不了解但是要有的文件

3：这个是我们自己建立的文件夹，这个里面的文件是各个模块的驱动文件，这个是需要了解的

4：这个部分是我们使用keil 5软件的文件，等会需要打开得文件夹。

5：这个是STM32CubeMX的生成的文件，不用管他，这个放在这里就行

6：这个有图标的话就是安装了STM32CubeMX,这个是STm32的程序配置工具，有兴趣的同学可以去了解一下，点我前往

2.程序的main.c文件

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * Copyright (c) 2025 STMicroelectronics.
  * All rights reserved.
  *
  * This software is licensed under terms that can be found in the LICENSE file
  * in the root directory of this software component.
  * If no LICENSE file comes with this software, it is provided AS-IS.
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "tim.h"
#include "usart.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "./HAL/key/key.h"
#include "./HAL/OLED/OLED_NEW.H"
#include "./HAL/DELAY/delay.h"

/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */
uint8_t key_num,flag_display;         //按键与显示变量
uint16_t time_1ms,time_500ms;         //计时变量1ms,500ms

//串口1的数据获取
uint8_t uart1_value;      //串口传的单个数据
//串口的储存数组，串口的接收时间，串口存值的数量
uint8_t uart1_buf[36],uart1_time,uart1_num;
uint8_t uart1_rx_flag;//串口的获取值的标志位

uint16_t num;
/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
void Key_function(void);								//按键函数
void Monitor_function(void);						//监测函数
void Display_function(void);						//显示函数
void Manage_function(void);							//处理函数
/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/****
*******按键设置函数
*****/
void Key_function(void)
{
	key_num = Chiclet_Keyboard_Scan();	//按键扫描
	if(key_num != 0)										//有按键按下
	{
		switch(key_num)
		{
			case 1:													//按键1，切换模式
				flag_display++;
				if(flag_display >= 4)					//一共4个模式
					flag_display = 0;
				OLED_Clear();									//按一下，清屏一次
			break;

			case 2:													//按键2

			break;

			case 3:													//按键3

			break;
			case 4:													//按键4，切换模式

			break;

			default:
			break;
		}
	}
}

/****
*******监测函数
*****/
void Monitor_function(void)
{
	if(time_500ms == 1)
	{
		time_500ms = 0;

	}


}


/****
*******显示函数
*****/
void Display_function(void)
{
	switch(flag_display)								//根据不同的显示模式标志位，显示不同
	{
		case 0:
			Oled_ShowString(0,4,"test");
      Oled_ShowCHinese(0,0,"温度");
      OLED_ShowNum(0,2,1234,4);


		break;

		case 1:

		break;

		case 2:

		break;

		case 3:

		break;
	}
}


/****
*******处理函数
*****/
void Manage_function(void)
{

}

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_TIM1_Init();
  MX_USART1_UART_Init();
  /* USER CODE BEGIN 2 */
  HAL_TIM_Base_Start_IT(&htim1);
	HAL_UART_Receive_IT(&huart1, &uart1_value, 1);
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  OLED_Init();
  OLED_Clear();
  while (1)
  {
    Key_function();							//按键函数
		Monitor_function();					//监测函数
		Display_function();					//显示函数
		Manage_function();					//处理函数
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
	if(htim->Instance == htim1.Instance)		//定时器1触发中断
	{
		time_1ms++;
		if(time_1ms>= 500)
		{
			time_1ms= 0;
			time_500ms = 1;
		}
  }

}

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
	if(huart->Instance == huart1.Instance)//串口1触发中断
	{
		HAL_UART_Receive_IT(&huart1, &uart1_value, 1);
		uart1_buf[uart1_num++] = uart1_value;
		uart1_time = 0;
	}


}
/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
